Geomembranes
High-performance HDPE and LLDPE liners engineered for water containment, irrigation and landfill projects across Nigeria.
What It Is
Geomembranes are flexible synthetic liners manufactured from high-density polyethylene (HDPE) or linear low-density polyethylene (LLDPE) resin. Once installed and seamed by hot-wedge or extrusion welding, they form a continuous, impermeable barrier that prevents the migration of liquids, leachate or gas through the soil beneath. Willem Olaf supplies smooth and textured geomembranes in a range of thicknesses, formulated with carbon black for UV stabilisation and chemical additives suited to West Africa's high temperatures and intense rainy-season UV exposure. Whether you are lining an irrigation reservoir, a fish pond or a landfill cell, our geomembranes are tested to ASTM and GRI standards before they leave the warehouse.
Key Properties / Technical Overview
Representative values across the range. Confirm exact figures for the selected grade on the product datasheet.
| Property | Value |
|---|---|
| Thickness range | 0.75 mm – 2.5 mm |
| Tensile strength at yield | ≥ 24 N/mm (ASTM D6693) |
| Elongation at break | ≥ 700% (ASTM D6693) |
| Puncture resistance | ≥ 540 N (ASTM D4833) |
| Carbon black content | 2.0% – 3.0% (UV stabilisation) |
| Density (HDPE) | 0.94 g/cm³ |
| Design life (covered installation) | Up to 50 years |
Applications
- Lining for water storage reservoirs and irrigation canals
- Aquaculture and fish pond lining
- Primary and secondary containment for landfill cells
- Mining tailings ponds and process water containment

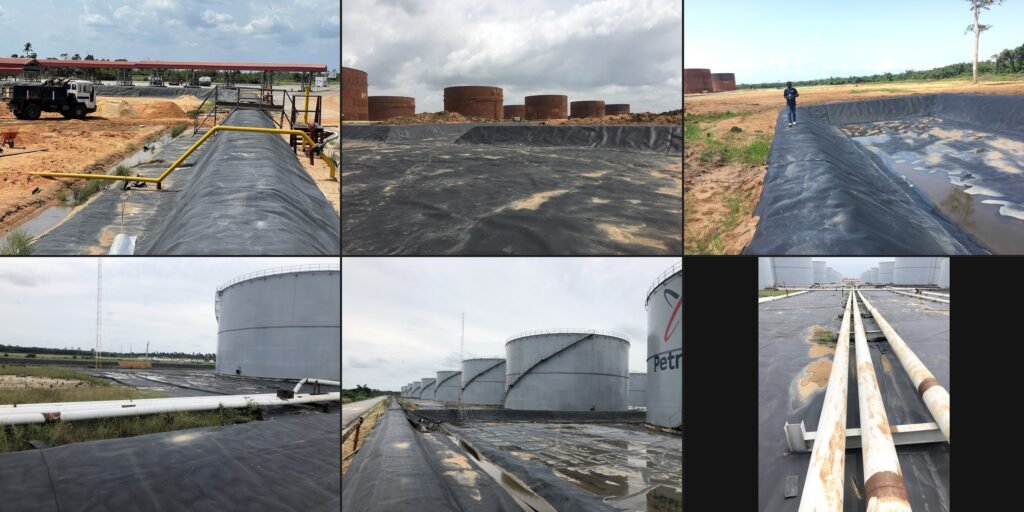

- Secondary containment for fuel and chemical storage

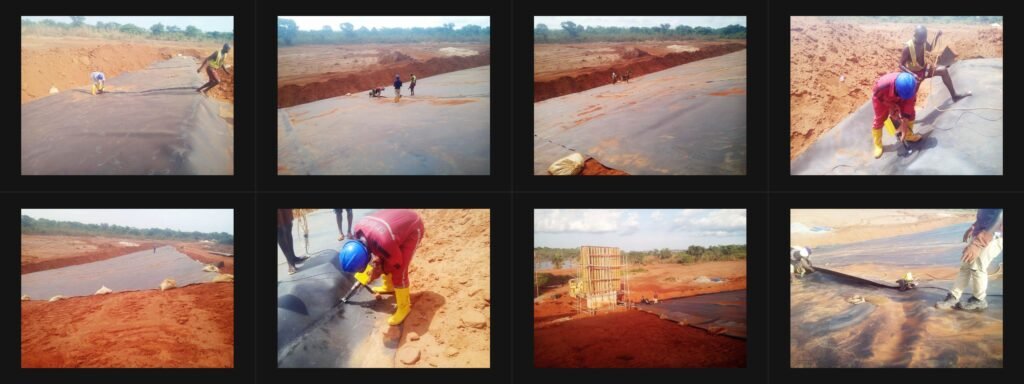

- Canal and dam rehabilitation
Benefits
UV & Chemical Resistance
Formulated to withstand intense tropical UV exposure and a wide range of chemicals.
Long Service Life
Up to a 50-year design life in covered installations, reducing whole-life cost.
Field-Weldable
Wedge and extrusion welding on site for continuous, leak-free seams.
Available Specifications
| Product | Grade / Thickness | Roll Width | Roll Length |
|---|---|---|---|
| HDPE Geomembrane | 0.75 / 1.0 / 1.5 / 2.0 / 2.5 mm | 7.0 m | 50 – 100 m |
| LLDPE Geomembrane | 0.75 / 1.0 / 1.5 mm | 6.5 m | 50 – 100 m |
| HDPE Textured Geomembrane | 1.0 / 1.5 / 2.0 mm, single or double-sided | 6.6 m | 50 m |
| Geomembrane Welding Accessories | Extrudate rod, wedge tape, repair patches | — | — |
Download the Datasheet
Get full technical specifications, test methods and installation notes for this product range.
Download PDF DatasheetSpecify Geomembranes for your project
Send us your project details and our technical team will respond within 24 hours with recommendations and a quote.
